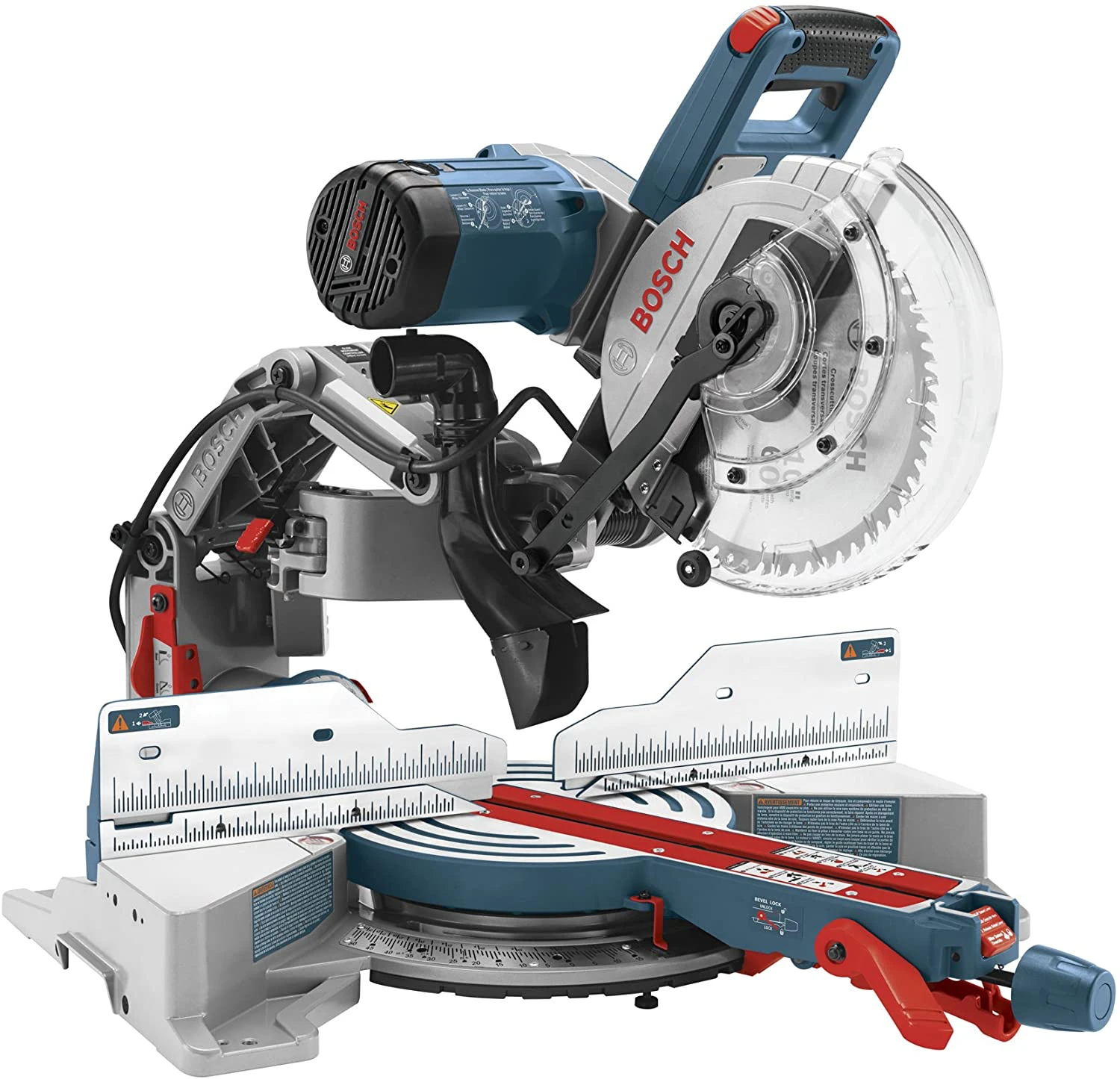

Bosch CM10GD 10″ Glide Miter Saw

Dual Bevel Miter Saw with Patented Axial-Glide System

Standard Equipment:

• CM10GD 10″ Miter Saw
• 60-Tooth Blade
• Dust Bag

Optional Accessories:

• Miter Saw Blades

Specifications:

• Rating: 120 Volt AC
• Amperage: 15.0
• No-load RPM: 4,800
• Blade Size: 10″
• Bevel Angle Range: 47¬∞ L, 47¬∞ R
• Miter Angle Range: 52¬∞ L, 60¬∞ R
• Weight: 64.0 lbs

Features:

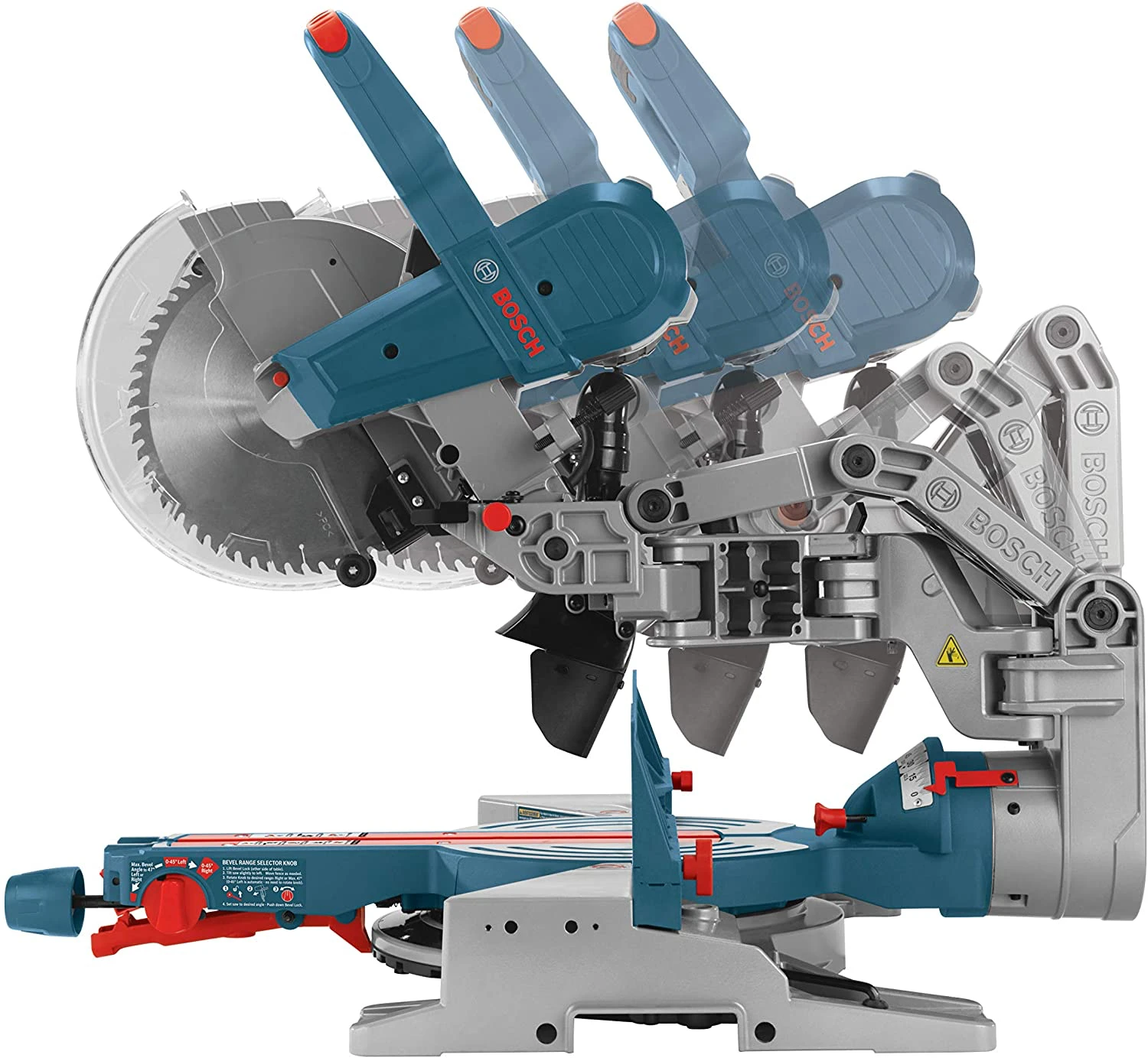

• Axial-Glide System: durable precision ‚Äì consistent precision over tool life; compact workspace ‚Äì saves up-to 10″ workspace; glide action ‚Äì unmatched smoothness of cut.
• Expanded cutting capacity: 12″ horizontal capacity (nominal); 5-1/2″ vertical capacity against the fence (base); 6″ crown capacity against the fence (45¬∞ spring).
• Upfront bevel controls – all-metal bevel lock lever and range selector located upfront for quick and easy bevel settings without reaching behind the saw.
• Chop/crown lock : locks head in place for maximum chop cutting capacity for upright base molding and nested crown molding.
• Tall sliding 4-1/4″ fences: for easy bevel set ups and increased crown and base molding capacity.
• Large easy-to-read uniform bevel & stainless steel miter scales: 52¬∞ left/60¬∞ right miter capacity; 47¬∞ left/47¬∞ right bevel capacity with marked detents and roof pitch angles.
• Adjustable miter detents: detents at 0¬∞, 15¬∞, 31.6¬∞, 22.5¬∞, 45¬∞, 60¬∞ right super-accurate and durable design.
• Push-button miter Detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment.
• Bevel detents: 0¬∞, 33.9¬∞, 45¬∞ left/right for accurate cuts.
• Category best 90% dust collection – optimized for cutting 2x material with a vacuum.
• Ergonomic ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use.
